Shibboleth Service Provider (SP) Configuration

Last updated on Mar 21, 2021 4 min read

Configure HTTPS for SP Site

To configure the HTTPS for given hostname on Apache, It is required to follow the below steps:

Create Self-signed Certificate
Configure SSL Params
Create Hostname Configuration File
Enable Apache Module

Create Self-signed Certificate

To configure the “HTTPS” for Shibboleth SP website, it is required to create “Self-signed” certificate by following the below command.

sudo mkdir /etc/apache2/ssl
sudo openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /etc/apache2/ssl/sp.key -out /etc/apache2/ssl/sp.crt

Configure SSL Params

Configure the SSL Params configuration for Hostname (Ex: sp.shibboleth.com).

sudo nano /etc/apache2/conf-available/sp-ssl-params.conf

SSLCipherSuite EECDH+AESGCM:EDH+AESGCM:AES256+EECDH:AES256+EDH
SSLProtocol All -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
SSLHonorCipherOrder On
# Disable preloading HSTS for now.  You can use the commented out header line that includes
# the "preload" directive if you understand the implications.
# Header always set Strict-Transport-Security "max-age=63072000; includeSubDomains; preload"
Header always set X-Frame-Options DENY
Header always set X-Content-Type-Options nosniff
# Requires Apache >= 2.4
SSLCompression off
SSLUseStapling on
SSLStaplingCache "shmcb:logs/stapling-cache(150000)"
# Requires Apache >= 2.4.11
SSLSessionTickets Off

Create Hostname Configuration

Create the configuration file as follows:

Hostname in “ServerName”
Hostname alias in “ServerAlias”
Slef-signed certificate path in “SSLCertificateFile” which was generated in above
Self-signed certificate key path in “SSLCertificateKeyFile” which was generated in above

sudo nano /etc/apache2/sites-available/sp.shibboleth.com.conf

<IfModule mod_ssl.c>
    <VirtualHost *:443>
        ServerName sp.shibboleth.com
        ServerAlias www.sp.shibboleth.com
        ServerAdmin winma@wso2.com
        ErrorLog ${APACHE_LOG_DIR}/error.log
        CustomLog ${APACHE_LOG_DIR}/access.log combined
#ProxyRequests Off
        <Proxy *>
          Order deny,allow
          Allow from all
        </Proxy>
SSLEngine on
        SSLProxyEngine On
        SSLCertificateFile /etc/apache2/ssl/sp.crt
        SSLCertificateKeyFile /etc/apache2/ssl/sp.key
ProxyRequests Off
        ProxyPreserveHost On
		<Location />
          Order allow,deny
          Allow from all
        </Location>
    </VirtualHost>
</IfModule>

Enable Apache Module

In order to make the chnages live, it is required to enable module and sites and ssl confgiration using the following command

sudo a2enmod proxy_http proxy ssl headers
sudo a2ensite sp.shibboleth.com
sudo a2enconf sp-ssl-params
sudo apache2ctl configtest
sudo systemctl restart apache2

Install SP

Run the following command to install the Shibboleth SP.

sudo apt-get install libapache2-mod-shib2
sudo a2enmod auth_basic
sudo a2enmod shib2

Configure SP Certificate

Generate the Key using “shib-keygen” utility and generate the certificate using “openssl” command

sudo shib-keygen -h sp.shibboleth.com
openssl x509 -text -noout -in /etc/shibboleth/sp-cert.pem

Configure Shibboleth2.xml

In order to make the “SP” works, It is required to configure “IDP” and “SP” hostname in “Shibboleth2.xml” along with other configuration as shown in video.

Configure idp hostname as idp.shibboleth.com
Configure sp hostname as sp.shibboleth.com
Under the <Sessions> set handlerSSL=true and cookieProps=https
Include the <MetadataProvider> as following:
	<MetadataProvider type="XML" file="idp-metadata.xml"/>
sudo cp /opt/shibboleth-idp/metadata/idp-metadata.xml /etc/shibboleth/

Access Status Page

After configuring shibboleth2.xml, make changes in “/etc/hosts” to map the application to the hostname for accessibility over browser. Once done access the status page link.

127.0.0.1 sp.shibboleth.com
https://sp.shibboleth.com/Shibboleth.sso/Status

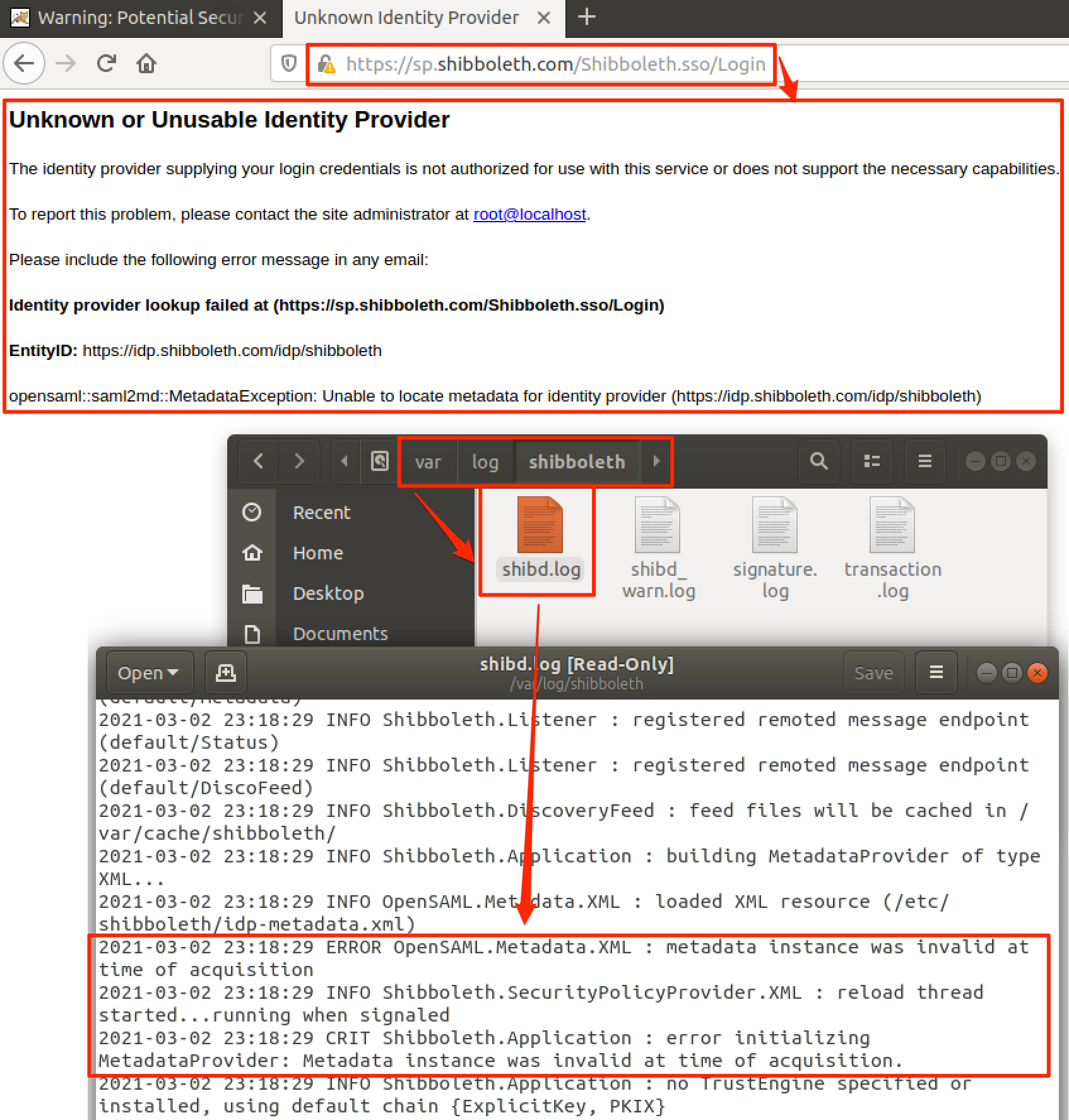

In certain circumstances, there might be a possibility the application respond with an error “Unknown or Unusable Identity Provider” as shown below:

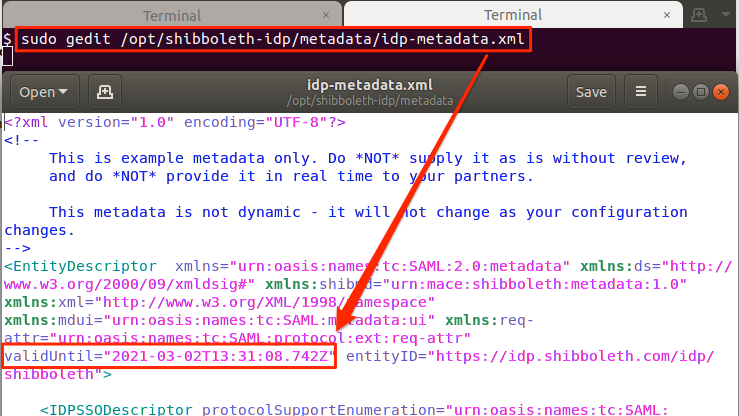

The reason behind the “Unknown or Unusable Identity Provider” error while accessing the SP Login page is “idp-metadata.xml” contains an outdated timestamp in “ValidUntil” attribute as shown below:

In order to resolve the “Unknown or Unusable Identity Provider” error, It is required to set future date in “ValidUntil” attributes in “/opt/shibboleth-idp/metdata/idp-metadata.xml” and copy the modified file in “/etc/shibboleth”.

Unsupported Request Resolved

While accessing SP Login page, sometime application responds with “Web Login Service - Unsupported Request” error. This usually happens when SP Metdata was unknown to IDP, To resolve this error, It’s required to follow the below steps as shown:

Download: https://sp.shibboleth.com/Shibboleth.sso/Metdata
Copy to: sudo cp Metadata /opt/shibboleth-idp/metadata/sp-metadata.xml
sudo gedit /opt/shibboleth-idp/conf/metadata-providers.xml
	<MetadataProvider id="LocalMetadata"  xsi:type="FilesystemMetadataProvider" metadataFile="/opt/shibboleth-idp/metadata/sp-metadata.xml"/>
Restart Services:
	sudo service tomcat restart
	sudo service apache2 restart
	sudo service shibd restart

Message Security Error

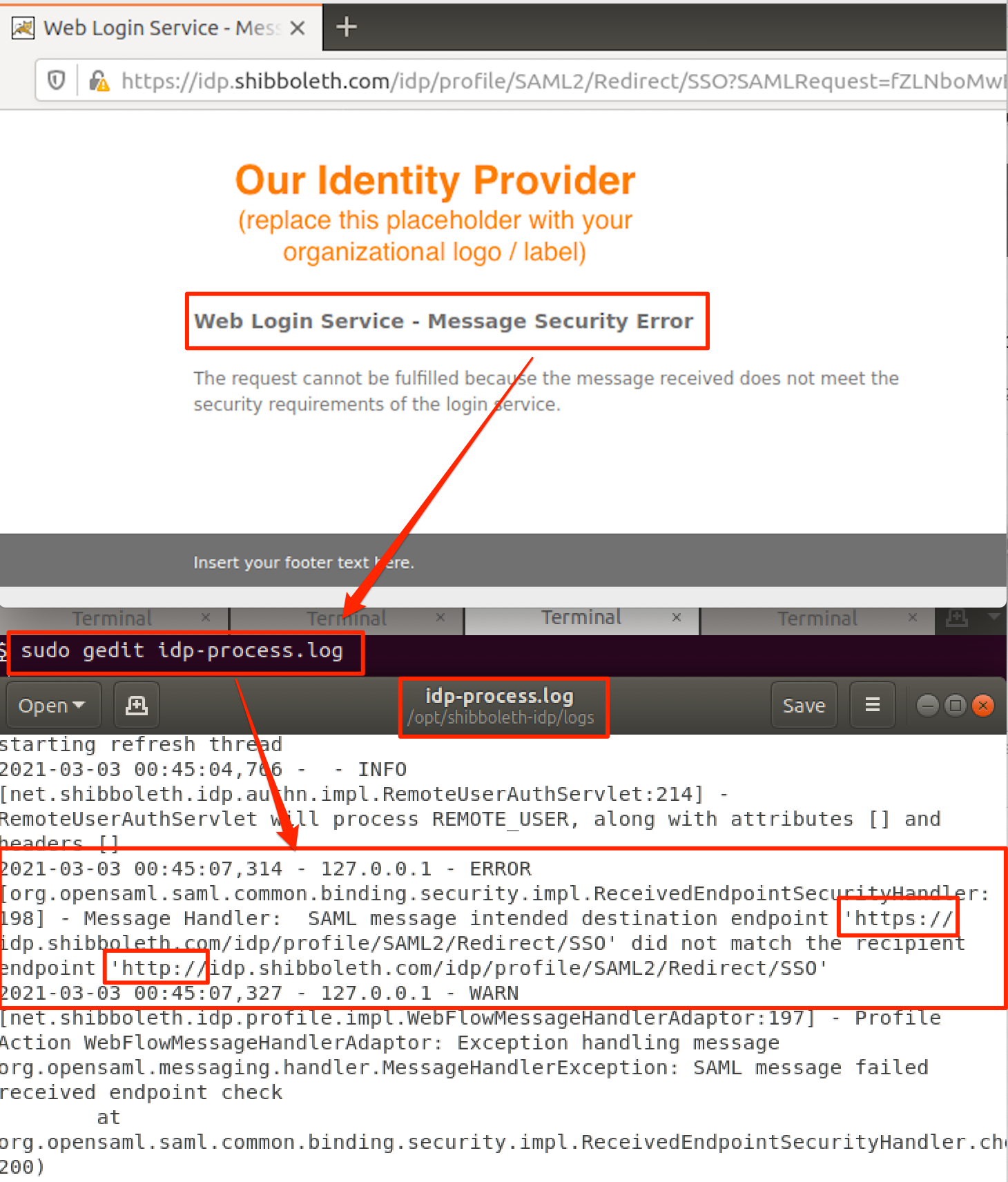

While accessing the SP Login page, Application sometimes responds with “Web Login Service - Message Security Error”, This usually happens due to protocol mismatch as shown:

Message Security Error Resolved

To resolve the “Web Login Service - Message Security Error”, It is required to write a connector in tomcat configuration file “$TOMCAT_HOME$/conf/server.xml” as shown:

<Connector address="idp.shibboleth.com"
		port="8080"
		protocol="HTTP/1.1"
		proxyPort="443"
		scheme="https"
		secure="true" />

LDAP Errors

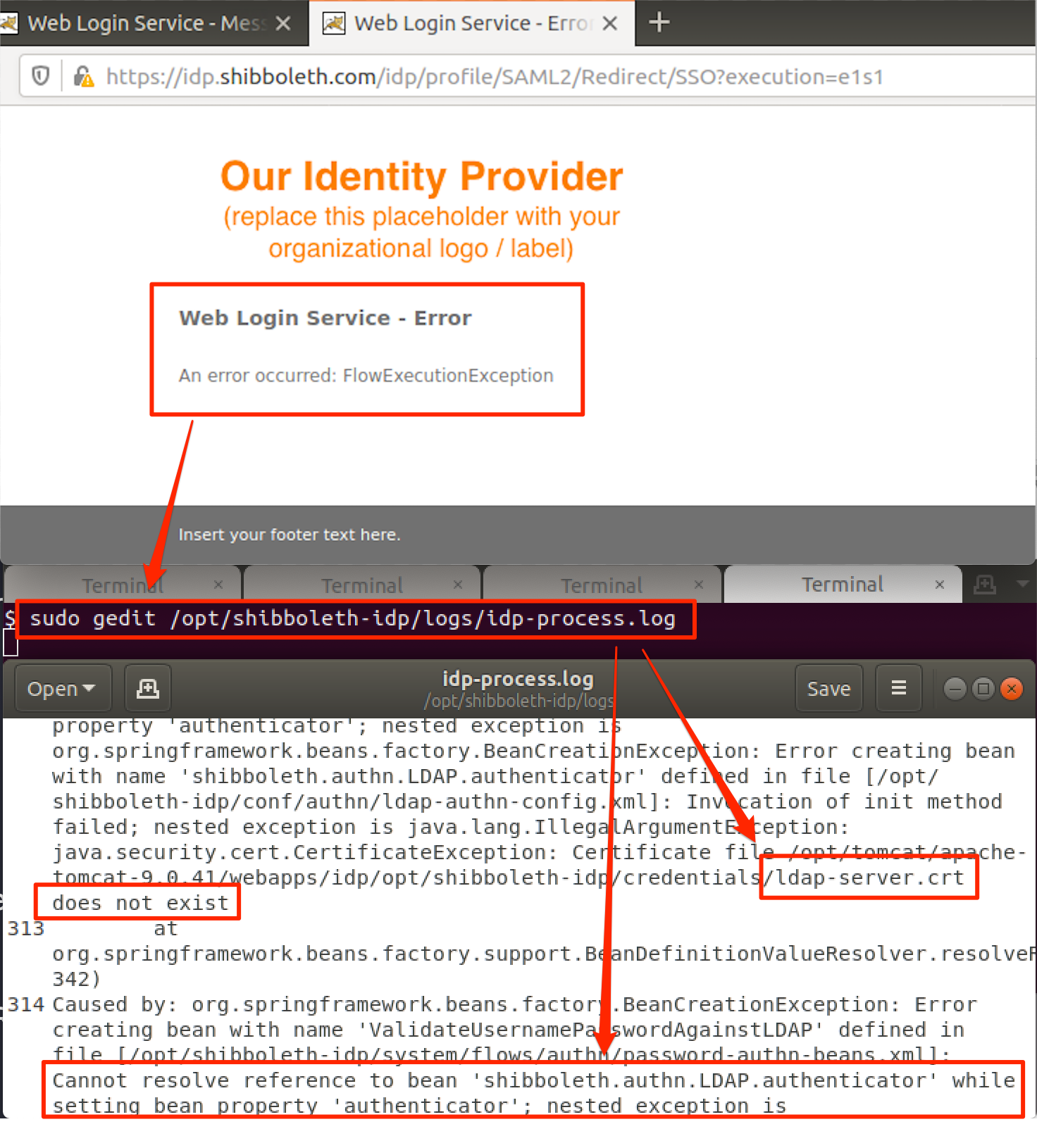

Once all the error related to SP configuration resolved, The SP application respond with “FlowExecutionException” as shown in figure, That means in order to make the SP works, it is required to configure LDAP Server.

To configure the LDAP, Check my blog on LDAP Configuration for Shibboleth SSO
